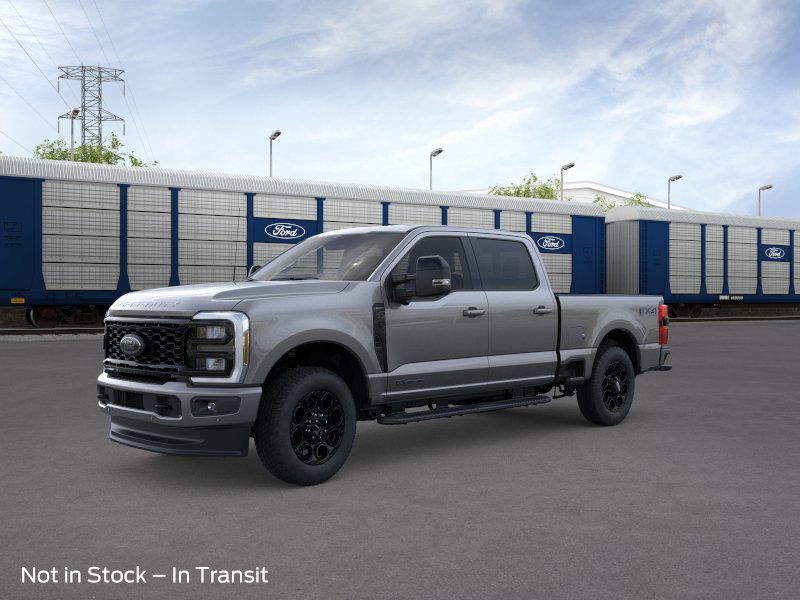

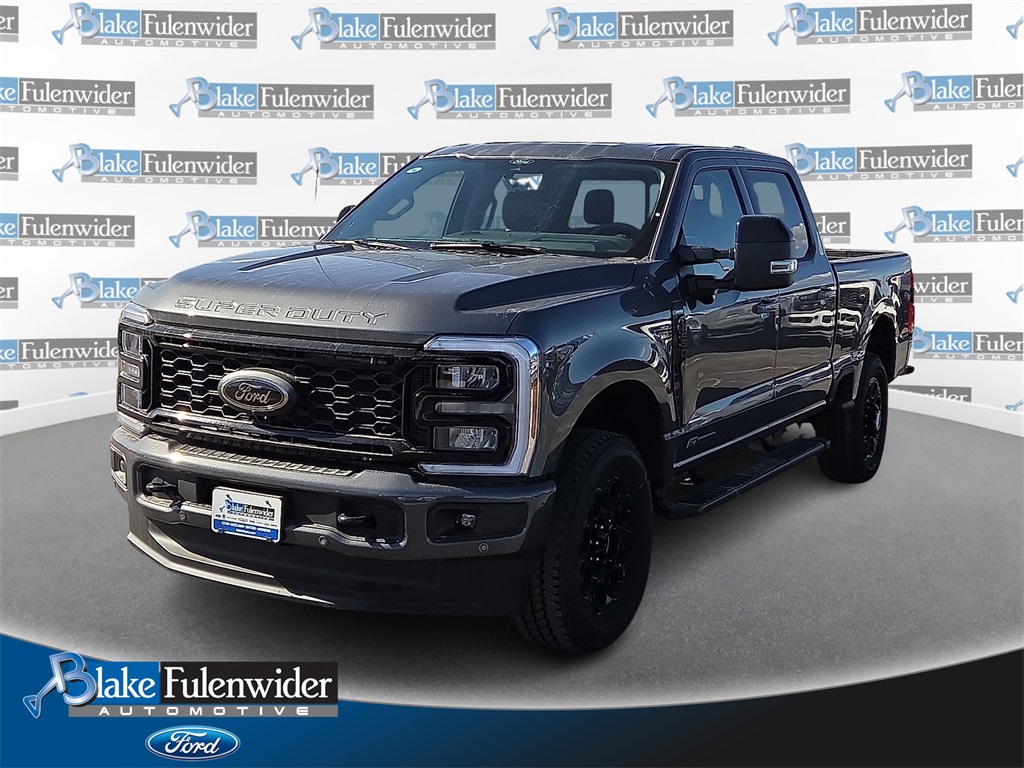

New 2026 Ford F-250SD LARIAT

VIN: 1FT8W2BT3TED00174

Stock #: 6469W2B

Vehicle Details

Engine: Power Stroke 6.7L V8 DI 32V OHV Turbodiesel

Exterior Color:Gray

Interior Color:Activex 40/Console/40 Seat Black Onyx

Drivetrain:Four Wheel Drive

Transmission:10-Speed Automatic

Fuel Type:Diesel

View Window Sticker

MSRP

$89,480

people recently viewed this vehicle*

Description

Gray 2026 Ford F-250SD LARIAT 4WD 10-Speed Automatic Power Stroke 6.7L V8 DI 32V OHV Turbodiesel

Recent Arrival!

ENGINE: 6.7L 4V OHV POWER STROKE V8 TURBO DIESEL B20

Standard Features

Main features

Vehicle Location

Blake Fulenwider Ford of Andrews
1700 North US Highway 385
Andrews, TX 79714

Blake Fulenwider Ford of Andrews

Departments

Contact Us

Showroom: 1700 North US Highway 385 Andrews, TX 79714-9035

Although every reasonable effort has been made to ensure the accuracy of the information contained on this site, absolute accuracy cannot be guaranteed. This site, and all information and materials appearing on it, are presented to the user “as is” without warranty of any kind, either express or implied. All vehicles are subject to prior sale. Price does not include applicable tax, title, and license charges. ‡Vehicles shown at different locations are not currently in our inventory (Not in Stock) but can be made available to you at our location within a reasonable date from the time of your request, not to exceed one week.

Technical Specifications

Vehicle Name: Ford Super Duty F-250 SRW
Body Style: SD Crew Cab
Body Code: T
Drivetrain: Four Wheel Drive
Passenger Capacity: 5, 6
Base Curb Weight: 6524, 6563, 6563, 7203
Gross Axle Wt Rating – Front: 4400, 4800, 5200, 5600, 5600, 5990, 5990, 5990
Gross Axle Wt Rating – Rear: 6340
Curb Weight – Front: 3786
Curb Weight – Rear: 2610
Gross Vehicle Weight Rating Cap: 10000, 10500, 10600, 11100, 11100
Fuel Economy Est-Combined: – TBD –
EPA Fuel Economy Est – City: – TBD –
EPA Fuel Economy Est – Hwy: – TBD –
Gross Combined Wt Rating: 21000, 23500, 30000
Dead Weight Hitch – Max Trailer Wt.: 5000
Dead Weight Hitch – Max Tongue Wt.: 500
Wt Distributing Hitch – Max Trailer Wt.: 14100, 15900, 22000, 22000
Wt Distributing Hitch – Max Tongue Wt.: 1410, 1590, 2200, 2200
Fifth Wheel Hitch – Max Trailer Wt.: 13900, 14400, 20500, 20500
Fifth Wheel Hitch – Max Tongue Wt.: 3475, 3600, 5125, 5125
Maximum Trailering Capacity: 14100, 15900, 22000, 22000
Engine Order Code: 99T
Engine Type: Intercooled Turbo Diesel V-8
Displacement: 6.7 L/406
Fuel System: Diesel Direct Injection
SAE Net Horsepower @ RPM: 475 @ 2600
SAE Net Torque @ RPM: 1050 @ 1600
Trans Order Code: 44F, 44G
Trans Type: 10
Trans Description Cont.: Automatic w/OD
Trans Description Cont. Again:
First Gear Ratio (:1): 4.62, 4.70
Second Gear Ratio (:1): 2.92, 2.98
Third Gear Ratio (:1): 2.13, 2.15
Fourth Gear Ratio (:1): 1.77
Fifth Gear Ratio (:1): 1.52
Sixth Gear Ratio (:1): 1.27, 1.28
Reverse Ratio (:1): 4.70, 4.87
Trans Power Take Off: , Yes
Trans PTO Access: No, Yes
Transfer Case Model: Electronic
Transfer Case Power Take Off: No, Yes
Cold Cranking Amps @ 0° F (Primary): 750
Cold Cranking Amps @ 0° F (2nd): 750
Tons/yr of CO2 Emissions @ 15K mi/year: – TBD –
Maximum Alternator Capacity (amps): 250 & 150, 250 & 160, 250
Engine Oil Cooler: None
Suspension Type – Front: Other
Suspension Type – Rear: Leaf
Spring Capacity – Front: 4400, 4800, 5200, 5600, 5600, 5990, 5990, 5990
Spring Capacity – Rear: 6340
Axle Type – Front: Non-Independent
Axle Type – Rear: Rigid Axle
Axle Capacity – Front: 6000
Axle Capacity – Rear: 7280
Axle Ratio (:1) – Front: 3.31, 3.55, 3.73, 4.30
Axle Ratio (:1) – Rear: 3.31, 3.55, 3.73, 4.30
Front Tire Order Code: TCH, TCW, TDX, TFW
Rear Tire Order Code: TCH, TCW, TDX, TFW
Spare Tire Order Code:
Front Tire Size: LT275/65SR18, LT275/65SR20, LT285/75SR18
Rear Tire Size: LT275/65SR18, LT275/65SR20, LT285/75SR18
Spare Tire Size: Full-Size
Front Tire Capacity: 6830, 7180
Rear Tire Capacity: 6830, 7180
Revolutions/Mile @ 45 mph – Front: 595, 612, 646
Revolutions/Mile @ 45 mph – Rear: 595, 612, 646
Front Wheel Size: 18 X 8, 20 X 8
Rear Wheel Size: 18 X 8, 20 X 8
Spare Wheel Size: Full-Size
Front Wheel Material: Aluminum
Rear Wheel Material: Aluminum
Spare Wheel Material: Aluminum, Steel
Steering Type: Re-Circulating Ball
Turning Diameter – Curb to Curb: 53
Brake Type: 4-Wheel Disc
Brake ABS System: 4-Wheel
Brake ABS System (Second Line): 4-Wheel
Disc – Front (Yes or ): Yes
Disc – Rear (Yes or ): Yes
Front Brake Rotor Diam x Thickness: 14.3
Rear Brake Rotor Diam x Thickness: 14.3
Drum – Rear (Yes or ):
Rear Drum Diam x Width:
Fuel Tank Capacity, Approx: 34
Front Head Room: 40.8
Front Leg Room: 43.9
Front Shoulder Room: 66.7
Front Hip Room: 62.5
Second Head Room: 40.4
Second Leg Room: 43.6
Second Shoulder Room: 65.9
Second Hip Room: 64.7
Wheelbase: 160
Length, Overall: 250
Width, Max w/o mirrors: 80
Height, Overall: 81.5, 83.9, 83.9
Overhang, Front: 38.2
Cab to Axle: 39.9
Ground to Top of Load Floor: 37.2, 39, 39
Ground Clearance, Front: 8.5
Ground Clearance, Rear: 8.5
Cargo Box Length @ Floor: 81.9
Cargo Box Width @ Top, Rear: 66.9
Cargo Box Width @ Floor: 66.9
Cargo Box Width @ Wheelhousings: 50.5
Cargo Box (Area) Height: 21.1
Tailgate Width: 60.5
Cargo Volume: 65.4
Seventh Gear Ratio (:1): 1.00
Eighth Gear Ratio (:1): 0.85
Country of Origin: United States Ford
Model Group: F-Series Pickups
Vehicle Segment: Large Pick-up
Vehicle Type: Crew Cab
Body Cab Style: Crew Cab
Bed Style: regular
Engine Displacement Units: 6.7, 6.7, 6.8, 6.8, 7.3
Engine Camshaft: OHV, OHV, OHV, SOHC, SOHC
Engine Block Type: iron, iron, iron, iron, iron
Engine Cylinder Count: 8, 8, 8, 8, 8
Engine Valve Count: 2, 2, 2, 4, 4
